Variable frequency drive Siemens SINAMICS G120X – 6SL3220-3YE30-0AF0 | Siemens G120X VFD

Item number: 104733

EAN: 4042948687574

Product description

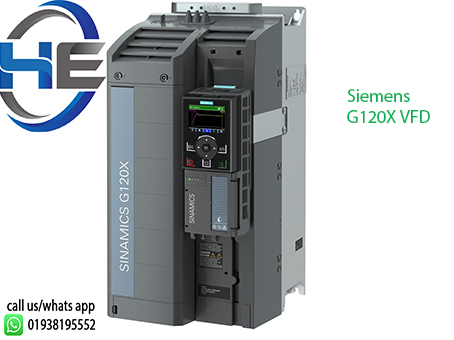

Variable frequency drive Siemens SINAMICS G120X – 6SL3220-3YE30-0AF0

The SINAMICS G120X – 6SL3220-3YE30-0AF0 3-phase variable frequency drive from Siemens is the ideal choice for controlling motors in areas with a focus on the movement of water/wastewater or heating, ventilation and air conditioning in building automation as well as in industrial environments. The variable frequency drive with a rated power of 18.5 kW complies with the global EMC standards. Thanks to the SINAMICS Smart Access Module, which is available separately and the IOP-2 operator panel, commissioning of the variable frequency drive is quick and easy.

Due to its robust construction, the SINAMICS G120X – 6SL3220-3YE30-0AF0 variable frequency drive can also be used in harsh environments and makes your drive application ready for digitalisation.

  • Drip-proof enclosure and painted assemblies
  • Integrated DC link reactors
  • Category C2 radio interference suppression filter
  • Basic Operator Panel IOP-2
  • PROFINET-PN/Ethernet IP Communication
  • Cloud connection with SINAMICS CONNECT 300
  • Integrated application-specific energy efficiency functions such as flux reduction, Keep Running Mode, Pump Boost or ECO mode
  • Integrated safety feature Safe Torque Off (STO SIL3)
  • Compatible with SIMATIC S7-1200, S7-1500 and S7-400
    Technical details
    General data

    Variable frequency drive
    SINAMICS G120X
    Internal fan
    PROFINET-PN, Ethernet IP
    FSD

    Electrical data

    380-480 V AC (+10/-20 %)
    47-63 Hz
    3 AC
    3 AC
    400 V
    15 kW
    18.5 kW
    33 A
    37 A
    4 kHz
    0-550 Hz
    6
    2
    2
    1
    200 m
    300 m

    Mechanical data

    200 mm
    239 mm
    472 mm

    Ambient conditions

    -20 °C
    45 °C
    IP20

    Further information

    CE
    EAC
    UL
    cUL
    C-Tick
    KCC
    REACH
    EMC 2004/108/EC, Low voltage 2006/95/ EC

    Classification

    27-02-31-01
    EC001857
    85044084
