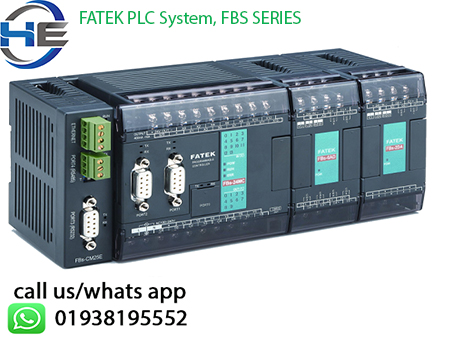

FATEK PLC System, FBS SERIES

PLC Brand
FATEK
Mounting Type
Panel
PLC Power (V)
220 V
Model Number
FBS SERIES
Fatek PLC
The FBs-PLC’s design incorporates a “System on Chip” (SoC) developed in-house by Fatek Corporation. The BGA chip consists of over 120,000 gates which integrates powerful features such as a Central Processing Unit (CPU), Memory, Hardware Logic Solver (HLS), 5 high-speed communication ports, 4 sets of hardware high-speed counters/timers, 4 axes of high-speed pulse outputs for NC positioning control (with linear interpolation), 16 high-speed interrupts and captured inputs. The FBs-PLC represents high functionality and reliability with exceptional value compared to other PLC’s in its class.





Basic Main Units / Products / FATEK AUTOMATION CORP.

Basic Main Units

1. :R –  Relay output;T – Transistor SINK(NPN) output
J – Transistor SOURCE (PNP) output
2. :2   built-in RS232 port;U – built-in USB port (non-standard)
3. :  AC 100~240VAC power supply
D12 – 12VDC power supply
D24 – 24VDC power supply
4. -C:Blank – Standard; -C – add in RTC
5. The unmarked frequencies of Digital Input (DI) or Digital Output (DO) are low speed.
